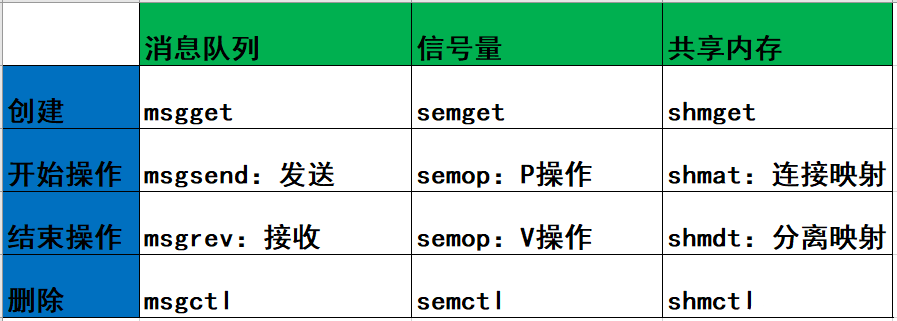

#include <sys/msg.h>
// 创建或打开消息队列：成功返回队列ID，失败返回-1
int msgget(key_t key, int flag);
// 添加消息：成功返回0，失败返回-1
int msgsnd(int msqid, const void *ptr, size_t size, int flag);
// 读取消息：成功返回消息数据的长度，失败返回-1
int msgrcv(int msqid, void *ptr, size_t size, long type,int flag);
// 控制消息队列：成功返回0，失败返回-1
int msgctl(int msqid, int cmd, struct msqid_ds *buf);

/* one msq_queue structure for each present queue on the system */
struct msg_queue {
	struct kern_ipc_perm q_perm;
	time64_t q_stime;		/* last msgsnd time */
	time64_t q_rtime;		/* last msgrcv time */
	time64_t q_ctime;		/* last change time */
	unsigned long q_cbytes;		/* current number of bytes on queue */
	unsigned long q_qnum;		/* number of messages in queue */
	unsigned long q_qbytes;		/* max number of bytes on queue */
	struct pid *q_lspid;		/* pid of last msgsnd */
	struct pid *q_lrpid;		/* last receive pid */

	struct list_head q_messages;
	struct list_head q_receivers;
	struct list_head q_senders;
} __randomize_layout;

/* one msg_receiver structure for each sleeping receiver */
struct msg_receiver {
	struct list_head	r_list;
	struct task_struct	*r_tsk;

	int			r_mode;
	long			r_msgtype;
	long			r_maxsize;

	struct msg_msg		*r_msg;
};

/* one msg_sender for each sleeping sender */
struct msg_sender {
	struct list_head	list;
	struct task_struct	*tsk;
	size_t                  msgsz;
};

long ksys_msgget(key_t key, int msgflg)
{
	struct ipc_namespace *ns;
	static const struct ipc_ops msg_ops = {
		.getnew = newque,
		.associate = security_msg_queue_associate,
	};
	struct ipc_params msg_params;

	ns = current->nsproxy->ipc_ns;

	msg_params.key = key;
	msg_params.flg = msgflg;

	return ipcget(ns, &msg_ids(ns), &msg_ops, &msg_params);
}

static long do_msgsnd(int msqid, long mtype, void __user *mtext,
		size_t msgsz, int msgflg)
{
	struct msg_queue *msq;
	struct msg_msg *msg;
	int err;
	struct ipc_namespace *ns;
	DEFINE_WAKE_Q(wake_q);

	ns = current->nsproxy->ipc_ns;

	if (msgsz > ns->msg_ctlmax || (long) msgsz < 0 || msqid < 0)
		return -EINVAL;
	if (mtype < 1)
		return -EINVAL;

	msg = load_msg(mtext, msgsz);
	if (IS_ERR(msg))
		return PTR_ERR(msg);

	msg->m_type = mtype;
	msg->m_ts = msgsz;

	rcu_read_lock();
	msq = msq_obtain_object_check(ns, msqid);
	if (IS_ERR(msq)) {
		err = PTR_ERR(msq);
		goto out_unlock1;
	}

	ipc_lock_object(&msq->q_perm);

	for (;;) {
		struct msg_sender s;

		err = -EACCES;
		if (ipcperms(ns, &msq->q_perm, S_IWUGO))
			goto out_unlock0;

		/* raced with RMID? */
		if (!ipc_valid_object(&msq->q_perm)) {
			err = -EIDRM;
			goto out_unlock0;
		}

		err = security_msg_queue_msgsnd(&msq->q_perm, msg, msgflg);
		if (err)
			goto out_unlock0;

		if (msg_fits_inqueue(msq, msgsz))
			break;

		/* queue full, wait: */
		if (msgflg & IPC_NOWAIT) {
			err = -EAGAIN;
			goto out_unlock0;
		}

		/* enqueue the sender and prepare to block */
		ss_add(msq, &s, msgsz);

		if (!ipc_rcu_getref(&msq->q_perm)) {
			err = -EIDRM;
			goto out_unlock0;
		}

		ipc_unlock_object(&msq->q_perm);
		rcu_read_unlock();
		schedule();

		rcu_read_lock();
		ipc_lock_object(&msq->q_perm);

		ipc_rcu_putref(&msq->q_perm, msg_rcu_free);
		/* raced with RMID? */
		if (!ipc_valid_object(&msq->q_perm)) {
			err = -EIDRM;
			goto out_unlock0;
		}
		ss_del(&s);

		if (signal_pending(current)) {
			err = -ERESTARTNOHAND;
			goto out_unlock0;
		}

	}

	ipc_update_pid(&msq->q_lspid, task_tgid(current));
	msq->q_stime = ktime_get_real_seconds();

	if (!pipelined_send(msq, msg, &wake_q)) {
		/* no one is waiting for this message, enqueue it */
		list_add_tail(&msg->m_list, &msq->q_messages);
		msq->q_cbytes += msgsz;
		msq->q_qnum++;
		percpu_counter_add_local(&ns->percpu_msg_bytes, msgsz);
		percpu_counter_add_local(&ns->percpu_msg_hdrs, 1);
	}

	err = 0;
	msg = NULL;

out_unlock0:
	ipc_unlock_object(&msq->q_perm);
	wake_up_q(&wake_q);
out_unlock1:
	rcu_read_unlock();
	if (msg != NULL)
		free_msg(msg);
	return err;
}

static long do_msgrcv(int msqid, void __user *buf, size_t bufsz, long msgtyp, int msgflg,
	       long (*msg_handler)(void __user *, struct msg_msg *, size_t))
{
	int mode;
	struct msg_queue *msq;
	struct ipc_namespace *ns;
	struct msg_msg *msg, *copy = NULL;
	DEFINE_WAKE_Q(wake_q);

	ns = current->nsproxy->ipc_ns;

	if (msqid < 0 || (long) bufsz < 0)
		return -EINVAL;

	if (msgflg & MSG_COPY) {
		if ((msgflg & MSG_EXCEPT) || !(msgflg & IPC_NOWAIT))
			return -EINVAL;
		copy = prepare_copy(buf, min_t(size_t, bufsz, ns->msg_ctlmax));
		if (IS_ERR(copy))
			return PTR_ERR(copy);
	}
	mode = convert_mode(&msgtyp, msgflg);

	rcu_read_lock();
	msq = msq_obtain_object_check(ns, msqid);
	if (IS_ERR(msq)) {
		rcu_read_unlock();
		free_copy(copy);
		return PTR_ERR(msq);
	}

	for (;;) {
		struct msg_receiver msr_d;

		msg = ERR_PTR(-EACCES);
		if (ipcperms(ns, &msq->q_perm, S_IRUGO))
			goto out_unlock1;

		ipc_lock_object(&msq->q_perm);

		/* raced with RMID? */
		if (!ipc_valid_object(&msq->q_perm)) {
			msg = ERR_PTR(-EIDRM);
			goto out_unlock0;
		}

		msg = find_msg(msq, &msgtyp, mode);
		if (!IS_ERR(msg)) {
			/*
			 * Found a suitable message.
			 * Unlink it from the queue.
			 */
			if ((bufsz < msg->m_ts) && !(msgflg & MSG_NOERROR)) {
				msg = ERR_PTR(-E2BIG);
				goto out_unlock0;
			}
			/*
			 * If we are copying, then do not unlink message and do
			 * not update queue parameters.
			 */
			if (msgflg & MSG_COPY) {
				msg = copy_msg(msg, copy);
				goto out_unlock0;
			}

			list_del(&msg->m_list);
			msq->q_qnum--;
			msq->q_rtime = ktime_get_real_seconds();
			ipc_update_pid(&msq->q_lrpid, task_tgid(current));
			msq->q_cbytes -= msg->m_ts;
			percpu_counter_sub_local(&ns->percpu_msg_bytes, msg->m_ts);
			percpu_counter_sub_local(&ns->percpu_msg_hdrs, 1);
			ss_wakeup(msq, &wake_q, false);

			goto out_unlock0;
		}

		/* No message waiting. Wait for a message */
		if (msgflg & IPC_NOWAIT) {
			msg = ERR_PTR(-ENOMSG);
			goto out_unlock0;
		}

		list_add_tail(&msr_d.r_list, &msq->q_receivers);
		msr_d.r_tsk = current;
		msr_d.r_msgtype = msgtyp;
		msr_d.r_mode = mode;
		if (msgflg & MSG_NOERROR)
			msr_d.r_maxsize = INT_MAX;
		else
			msr_d.r_maxsize = bufsz;

		/* memory barrier not require due to ipc_lock_object() */
		WRITE_ONCE(msr_d.r_msg, ERR_PTR(-EAGAIN));

		/* memory barrier not required, we own ipc_lock_object() */
		__set_current_state(TASK_INTERRUPTIBLE);

		ipc_unlock_object(&msq->q_perm);
		rcu_read_unlock();
		schedule();

		/*
		 * Lockless receive, part 1:
		 * We don't hold a reference to the queue and getting a
		 * reference would defeat the idea of a lockless operation,
		 * thus the code relies on rcu to guarantee the existence of
		 * msq:
		 * Prior to destruction, expunge_all(-EIRDM) changes r_msg.
		 * Thus if r_msg is -EAGAIN, then the queue not yet destroyed.
		 */
		rcu_read_lock();

		/*
		 * Lockless receive, part 2:
		 * The work in pipelined_send() and expunge_all():
		 * - Set pointer to message
		 * - Queue the receiver task for later wakeup
		 * - Wake up the process after the lock is dropped.
		 *
		 * Should the process wake up before this wakeup (due to a
		 * signal) it will either see the message and continue ...
		 */
		msg = READ_ONCE(msr_d.r_msg);
		if (msg != ERR_PTR(-EAGAIN)) {
			/* see MSG_BARRIER for purpose/pairing */
			smp_acquire__after_ctrl_dep();

			goto out_unlock1;
		}

		 /*
		  * ... or see -EAGAIN, acquire the lock to check the message
		  * again.
		  */
		ipc_lock_object(&msq->q_perm);

		msg = READ_ONCE(msr_d.r_msg);
		if (msg != ERR_PTR(-EAGAIN))
			goto out_unlock0;

		list_del(&msr_d.r_list);
		if (signal_pending(current)) {
			msg = ERR_PTR(-ERESTARTNOHAND);
			goto out_unlock0;
		}

		ipc_unlock_object(&msq->q_perm);
	}

out_unlock0:
	ipc_unlock_object(&msq->q_perm);
	wake_up_q(&wake_q);
out_unlock1:
	rcu_read_unlock();
	if (IS_ERR(msg)) {
		free_copy(copy);
		return PTR_ERR(msg);
	}

	bufsz = msg_handler(buf, msg, bufsz);
	free_msg(msg);

	return bufsz;
}

long ksys_msgrcv(int msqid, struct msgbuf __user *msgp, size_t msgsz,
		 long msgtyp, int msgflg)
{
	return do_msgrcv(msqid, msgp, msgsz, msgtyp, msgflg, do_msg_fill);
}

static long ksys_msgctl(int msqid, int cmd, struct msqid_ds __user *buf, int version)
{
	struct ipc_namespace *ns;
	struct msqid64_ds msqid64;
	int err;

	if (msqid < 0 || cmd < 0)
		return -EINVAL;

	ns = current->nsproxy->ipc_ns;

	switch (cmd) {
	case IPC_INFO:
	case MSG_INFO: {
		struct msginfo msginfo;
		err = msgctl_info(ns, msqid, cmd, &msginfo);
		if (err < 0)
			return err;
		if (copy_to_user(buf, &msginfo, sizeof(struct msginfo)))
			err = -EFAULT;
		return err;
	}
	case MSG_STAT:	/* msqid is an index rather than a msg queue id */
	case MSG_STAT_ANY:
	case IPC_STAT:
		err = msgctl_stat(ns, msqid, cmd, &msqid64);
		if (err < 0)
			return err;
		if (copy_msqid_to_user(buf, &msqid64, version))
			err = -EFAULT;
		return err;
	case IPC_SET:
		if (copy_msqid_from_user(&msqid64, buf, version))
			return -EFAULT;
		return msgctl_down(ns, msqid, cmd, &msqid64.msg_perm,
				   msqid64.msg_qbytes);
	case IPC_RMID:
		return msgctl_down(ns, msqid, cmd, NULL, 0);
	default:
		return  -EINVAL;
	}
}

/* One semaphore structure for each semaphore in the system. */
struct sem {
	int	semval;		/* current value */
	/*
	 * PID of the process that last modified the semaphore. For
	 * Linux, specifically these are:
	 *  - semop
	 *  - semctl, via SETVAL and SETALL.
	 *  - at task exit when performing undo adjustments (see exit_sem).
	 */
	struct pid *sempid;
	spinlock_t	lock;	/* spinlock for fine-grained semtimedop */
	struct list_head pending_alter; /* pending single-sop operations */
					/* that alter the semaphore */
	struct list_head pending_const; /* pending single-sop operations */
					/* that do not alter the semaphore*/
	time64_t	 sem_otime;	/* candidate for sem_otime */
} ____cacheline_aligned_in_smp;
/* One sem_array data structure for each set of semaphores in the system. */
struct sem_array {
	struct kern_ipc_perm	sem_perm;	/* permissions .. see ipc.h */
	time64_t		sem_ctime;	/* create/last semctl() time */
	struct list_head	pending_alter;	/* pending operations */
						/* that alter the array */
	struct list_head	pending_const;	/* pending complex operations */
						/* that do not alter semvals */
	struct list_head	list_id;	/* undo requests on this array */
	int			sem_nsems;	/* no. of semaphores in array */
	int			complex_count;	/* pending complex operations */
	unsigned int		use_global_lock;/* >0: global lock required */

	struct sem		sems[];
} __randomize_layout;

long ksys_semget(key_t key, int nsems, int semflg)
{
	struct ipc_namespace *ns;
	static const struct ipc_ops sem_ops = {
		.getnew = newary,
		.associate = security_sem_associate,
		.more_checks = sem_more_checks,
	};
	struct ipc_params sem_params;

	ns = current->nsproxy->ipc_ns;

	if (nsems < 0 || nsems > ns->sc_semmsl)
		return -EINVAL;

	sem_params.key = key;
	sem_params.flg = semflg;
	sem_params.u.nsems = nsems;

	return ipcget(ns, &sem_ids(ns), &sem_ops, &sem_params);
}

/**
 * perform_atomic_semop[_slow] - Attempt to perform semaphore
 *                               operations on a given array.
 * @sma: semaphore array
 * @q: struct sem_queue that describes the operation
 *
 * Caller blocking are as follows, based the value
 * indicated by the semaphore operation (sem_op):
 *
 *  (1) >0 never blocks.
 *  (2)  0 (wait-for-zero operation): semval is non-zero.
 *  (3) <0 attempting to decrement semval to a value smaller than zero.
 *
 * Returns 0 if the operation was possible.
 * Returns 1 if the operation is impossible, the caller must sleep.
 * Returns <0 for error codes.
 */
static int perform_atomic_semop(struct sem_array *sma, struct sem_queue *q)
{
	int result, sem_op, nsops;
	struct sembuf *sop;
	struct sem *curr;
	struct sembuf *sops;
	struct sem_undo *un;

	sops = q->sops;
	nsops = q->nsops;
	un = q->undo;

	if (unlikely(q->dupsop))
		return perform_atomic_semop_slow(sma, q);

	/*
	 * We scan the semaphore set twice, first to ensure that the entire
	 * operation can succeed, therefore avoiding any pointless writes
	 * to shared memory and having to undo such changes in order to block
	 * until the operations can go through.
	 */
	for (sop = sops; sop < sops + nsops; sop++) {
		int idx = array_index_nospec(sop->sem_num, sma->sem_nsems);

		curr = &sma->sems[idx];
		sem_op = sop->sem_op;
		result = curr->semval;

		if (!sem_op && result)
			goto would_block; /* wait-for-zero */

		result += sem_op;
		if (result < 0)
			goto would_block;

		if (result > SEMVMX)
			return -ERANGE;

		if (sop->sem_flg & SEM_UNDO) {
			int undo = un->semadj[sop->sem_num] - sem_op;

			/* Exceeding the undo range is an error. */
			if (undo < (-SEMAEM - 1) || undo > SEMAEM)
				return -ERANGE;
		}
	}

	for (sop = sops; sop < sops + nsops; sop++) {
		curr = &sma->sems[sop->sem_num];
		sem_op = sop->sem_op;

		if (sop->sem_flg & SEM_UNDO) {
			int undo = un->semadj[sop->sem_num] - sem_op;

			un->semadj[sop->sem_num] = undo;
		}
		curr->semval += sem_op;
		ipc_update_pid(&curr->sempid, q->pid);
	}

	return 0;

would_block:
	q->blocking = sop;
	return sop->sem_flg & IPC_NOWAIT ? -EAGAIN : 1;
}

static long ksys_semctl(int semid, int semnum, int cmd, unsigned long arg, int version)
{
	struct ipc_namespace *ns;
	void __user *p = (void __user *)arg;
	struct semid64_ds semid64;
	int err;

	if (semid < 0)
		return -EINVAL;

	ns = current->nsproxy->ipc_ns;

	switch (cmd) {
	case IPC_INFO:
	case SEM_INFO:
		return semctl_info(ns, semid, cmd, p);
	case IPC_STAT:
	case SEM_STAT:
	case SEM_STAT_ANY:
		err = semctl_stat(ns, semid, cmd, &semid64);
		if (err < 0)
			return err;
		if (copy_semid_to_user(p, &semid64, version))
			err = -EFAULT;
		return err;
	case GETALL:
	case GETVAL:
	case GETPID:
	case GETNCNT:
	case GETZCNT:
	case SETALL:
		return semctl_main(ns, semid, semnum, cmd, p);
	case SETVAL: {
		int val;
#if defined(CONFIG_64BIT) && defined(__BIG_ENDIAN)
		/* big-endian 64bit */
		val = arg >> 32;
#else
		/* 32bit or little-endian 64bit */
		val = arg;
#endif
		return semctl_setval(ns, semid, semnum, val);
	}
	case IPC_SET:
		if (copy_semid_from_user(&semid64, p, version))
			return -EFAULT;
		fallthrough;
	case IPC_RMID:
		return semctl_down(ns, semid, cmd, &semid64);
	default:
		return -EINVAL;
	}
}

struct shmid_kernel {
	struct kern_ipc_perm shm_perm; /* 权限结构体 */
	struct file *shm_file;         /* 对应的文件 */
	size_t shm_segsz;              /* 段大小 */
	struct user_struct *shm_creator; /* 创建者 */
	struct user_struct *shm_last_attach; /* 最后一次附加的用户 */
	struct work_struct shm_rmid_work; /* 删除工作 */
	int shm_nattch;               /* 当前附加的进程数 */
	time64_t shm_atim;            /* 最后附加时间 */
	time64_t shm_dtim;            /* 最后分离时间 */
	time64_t shm_ctim;            /* 最后改变时间 */
	pid_t shm_cprid;              /* 创建者 PID */
	pid_t shm_lprid;              /* 最后附加或分离的 PID */
};

SYSCALL_DEFINE3(shmget, key_t, key, size_t, size, int, shmflg)
{
	return ksys_shmget(key, size, shmflg);
}

long ksys_shmget(key_t key, size_t size, int shmflg)
{
	struct ipc_namespace *ns;
	static const struct ipc_ops shm_ops = {
		.getnew = newseg,
		.associate = security_shm_associate,
		.more_checks = shm_more_checks,
	};
	struct ipc_params shm_params;

	ns = current->nsproxy->ipc_ns;

	shm_params.key = key;
	shm_params.flg = shmflg;
	shm_params.u.size = size;

	return ipcget(ns, &shm_ids(ns), &shm_ops, &shm_params);
}

int ipcget(struct ipc_namespace *ns, struct ipc_ids *ids,
            const struct ipc_ops *ops, struct ipc_params *params)
{
    if (params->key == IPC_PRIVATE)
        return ipcget_new(ns, ids, ops, params);
    else
        return ipcget_public(ns, ids, ops, params);
}

long do_shmat(int shmid, char __user *shmaddr, int shmflg,
	      ulong *raddr, unsigned long shmlba)
{
	struct shmid_kernel *shp;
	unsigned long addr = (unsigned long)shmaddr;
	unsigned long size;
	struct file *file, *base;
	int    err;
	unsigned long flags = MAP_SHARED;
	unsigned long prot;
	int acc_mode;
	struct ipc_namespace *ns;
	struct shm_file_data *sfd;
	int f_flags;
	unsigned long populate = 0;

	err = -EINVAL;
	if (shmid < 0)
		goto out;

	if (addr) {
		if (addr & (shmlba - 1)) {
			if (shmflg & SHM_RND) {
				addr &= ~(shmlba - 1);  /* round down */

				/*
				 * Ensure that the round-down is non-nil
				 * when remapping. This can happen for
				 * cases when addr < shmlba.
				 */
				if (!addr && (shmflg & SHM_REMAP))
					goto out;
			} else
#ifndef __ARCH_FORCE_SHMLBA
				if (addr & ~PAGE_MASK)
#endif
					goto out;
		}

		flags |= MAP_FIXED;
	} else if ((shmflg & SHM_REMAP))
		goto out;

	if (shmflg & SHM_RDONLY) {
		prot = PROT_READ;
		acc_mode = S_IRUGO;
		f_flags = O_RDONLY;
	} else {
		prot = PROT_READ | PROT_WRITE;
		acc_mode = S_IRUGO | S_IWUGO;
		f_flags = O_RDWR;
	}
	if (shmflg & SHM_EXEC) {
		prot |= PROT_EXEC;
		acc_mode |= S_IXUGO;
	}

	/*
	 * We cannot rely on the fs check since SYSV IPC does have an
	 * additional creator id...
	 */
	ns = current->nsproxy->ipc_ns;
	rcu_read_lock();
	shp = shm_obtain_object_check(ns, shmid);
	if (IS_ERR(shp)) {
		err = PTR_ERR(shp);
		goto out_unlock;
	}

	err = -EACCES;
	if (ipcperms(ns, &shp->shm_perm, acc_mode))
		goto out_unlock;

	err = security_shm_shmat(&shp->shm_perm, shmaddr, shmflg);
	if (err)
		goto out_unlock;

	ipc_lock_object(&shp->shm_perm);

	/* check if shm_destroy() is tearing down shp */
	if (!ipc_valid_object(&shp->shm_perm)) {
		ipc_unlock_object(&shp->shm_perm);
		err = -EIDRM;
		goto out_unlock;
	}

	/*
	 * We need to take a reference to the real shm file to prevent the
	 * pointer from becoming stale in cases where the lifetime of the outer
	 * file extends beyond that of the shm segment.  It's not usually
	 * possible, but it can happen during remap_file_pages() emulation as
	 * that unmaps the memory, then does ->mmap() via file reference only.
	 * We'll deny the ->mmap() if the shm segment was since removed, but to
	 * detect shm ID reuse we need to compare the file pointers.
	 */
	base = get_file(shp->shm_file);
	shp->shm_nattch++;
	size = i_size_read(file_inode(base));
	ipc_unlock_object(&shp->shm_perm);
	rcu_read_unlock();

	err = -ENOMEM;
	sfd = kzalloc(sizeof(*sfd), GFP_KERNEL);
	if (!sfd) {
		fput(base);
		goto out_nattch;
	}

	file = alloc_file_clone(base, f_flags,
			  is_file_hugepages(base) ?
				&shm_file_operations_huge :
				&shm_file_operations);
	err = PTR_ERR(file);
	if (IS_ERR(file)) {
		kfree(sfd);
		fput(base);
		goto out_nattch;
	}

	sfd->id = shp->shm_perm.id;
	sfd->ns = get_ipc_ns(ns);
	sfd->file = base;
	sfd->vm_ops = NULL;
	file->private_data = sfd;

	err = security_mmap_file(file, prot, flags);
	if (err)
		goto out_fput;

	if (mmap_write_lock_killable(current->mm)) {
		err = -EINTR;
		goto out_fput;
	}

	if (addr && !(shmflg & SHM_REMAP)) {
		err = -EINVAL;
		if (addr + size < addr)
			goto invalid;

		if (find_vma_intersection(current->mm, addr, addr + size))
			goto invalid;
	}

	addr = do_mmap(file, addr, size, prot, flags, 0, 0, &populate, NULL);
	*raddr = addr;
	err = 0;
	if (IS_ERR_VALUE(addr))
		err = (long)addr;
invalid:
	mmap_write_unlock(current->mm);
	if (populate)
		mm_populate(addr, populate);

out_fput:
	fput(file);

out_nattch:
	down_write(&shm_ids(ns).rwsem);
	shp = shm_lock(ns, shmid);
	shp->shm_nattch--;

	if (shm_may_destroy(shp))
		shm_destroy(ns, shp);
	else
		shm_unlock(shp);
	up_write(&shm_ids(ns).rwsem);
	return err;

out_unlock:
	rcu_read_unlock();
out:
	return err;
}

COMPAT_SYSCALL_DEFINE3(shmat, int, shmid, compat_uptr_t, shmaddr, int, shmflg)
{
	unsigned long ret;
	long err;

	err = do_shmat(shmid, compat_ptr(shmaddr), shmflg, &ret, COMPAT_SHMLBA);
	if (err)
		return err;
	force_successful_syscall_return();
	return (long)ret;
}
#endif

/*
 * detach and kill segment if marked destroyed.
 * The work is done in shm_close.
 */
long ksys_shmdt(char __user *shmaddr)
{
	struct mm_struct *mm = current->mm;
	struct vm_area_struct *vma;
	unsigned long addr = (unsigned long)shmaddr;
	int retval = -EINVAL;
#ifdef CONFIG_MMU
	loff_t size = 0;
	struct file *file;
	VMA_ITERATOR(vmi, mm, addr);
#endif

	if (addr & ~PAGE_MASK)
		return retval;

	if (mmap_write_lock_killable(mm))
		return -EINTR;

	/*
	 * This function tries to be smart and unmap shm segments that
	 * were modified by partial mlock or munmap calls:
	 * - It first determines the size of the shm segment that should be
	 *   unmapped: It searches for a vma that is backed by shm and that
	 *   started at address shmaddr. It records it's size and then unmaps
	 *   it.
	 * - Then it unmaps all shm vmas that started at shmaddr and that
	 *   are within the initially determined size and that are from the
	 *   same shm segment from which we determined the size.
	 * Errors from do_munmap are ignored: the function only fails if
	 * it's called with invalid parameters or if it's called to unmap
	 * a part of a vma. Both calls in this function are for full vmas,
	 * the parameters are directly copied from the vma itself and always
	 * valid - therefore do_munmap cannot fail. (famous last words?)
	 */
	/*
	 * If it had been mremap()'d, the starting address would not
	 * match the usual checks anyway. So assume all vma's are
	 * above the starting address given.
	 */

#ifdef CONFIG_MMU
	for_each_vma(vmi, vma) {
		/*
		 * Check if the starting address would match, i.e. it's
		 * a fragment created by mprotect() and/or munmap(), or it
		 * otherwise it starts at this address with no hassles.
		 */
		if ((vma->vm_ops == &shm_vm_ops) &&
			(vma->vm_start - addr)/PAGE_SIZE == vma->vm_pgoff) {

			/*
			 * Record the file of the shm segment being
			 * unmapped.  With mremap(), someone could place
			 * page from another segment but with equal offsets
			 * in the range we are unmapping.
			 */
			file = vma->vm_file;
			size = i_size_read(file_inode(vma->vm_file));
			do_vma_munmap(&vmi, vma, vma->vm_start, vma->vm_end,
				      NULL, false);
			/*
			 * We discovered the size of the shm segment, so
			 * break out of here and fall through to the next
			 * loop that uses the size information to stop
			 * searching for matching vma's.
			 */
			retval = 0;
			vma = vma_next(&vmi);
			break;
		}
	}

	/*
	 * We need look no further than the maximum address a fragment
	 * could possibly have landed at. Also cast things to loff_t to
	 * prevent overflows and make comparisons vs. equal-width types.
	 */
	size = PAGE_ALIGN(size);
	while (vma && (loff_t)(vma->vm_end - addr) <= size) {
		/* finding a matching vma now does not alter retval */
		if ((vma->vm_ops == &shm_vm_ops) &&
		    ((vma->vm_start - addr)/PAGE_SIZE == vma->vm_pgoff) &&
		    (vma->vm_file == file)) {
			do_vma_munmap(&vmi, vma, vma->vm_start, vma->vm_end,
				      NULL, false);
		}

		vma = vma_next(&vmi);
	}

#else	/* CONFIG_MMU */
	vma = vma_lookup(mm, addr);
	/* under NOMMU conditions, the exact address to be destroyed must be
	 * given
	 */
	if (vma && vma->vm_start == addr && vma->vm_ops == &shm_vm_ops) {
		do_munmap(mm, vma->vm_start, vma->vm_end - vma->vm_start, NULL);
		retval = 0;
	}

#endif

	mmap_write_unlock(mm);
	return retval;
}

// 共享内存控制函数
int shmctl(int shmid, int cmd, struct shmid_ds *buf);

// 参数 struct shmid_ds 结构体原型
struct shmid_ds {
    struct ipc_perm shm_perm;    /* Ownership and permissions */
    size_t          shm_segsz;   /* Size of segment (bytes) */
    time_t          shm_atime;   /* Last attach time */
    time_t          shm_dtime;   /* Last detach time */
    time_t          shm_ctime;   /* Last change time */
    pid_t           shm_cpid;    /* PID of creator */
    pid_t           shm_lpid;    /* PID of last shmat(2)/shmdt(2) */
    // 引用计数, 多少个进程和共享内存进行了关联
    shmatt_t        shm_nattch;  /* 记录了有多少个进程和当前共享内存进行了管联 */
    ...
};

int security_shmat(struct shmid_kernel *shp, char __user *shmaddr, int shmflg)
{
    return call_int_hook(shmat, 0, shp, shmaddr, shmflg);
}
